HRS2(H) Relay
1.COIL DATA
| 1-1.Nominal Voltage | 3 VDC to 24 VDC |
| 1-2.Coil Resistance | Refer to Table 1 |
| 1-3.Operate Voltage | Refer to Table 1 |
| 1-4.Release Voltage | Refer to Table 1 |
| 1-5.Nominal Power Consumption | 150 to 360 mW |
2.CONTACT DATA
| 2-1.Contact Arrangement | 2 Form C | |
| 2-2.Contact Material | AuAg | |
| 2-3.Contact Rating | 1A 24 VDC / 120VAC | |
| 2-4.Max. Switching Voltage | 60 VDC / 120 VAC | |
| 2-5.Max. Switching Current | 2A | |
| 2-6.Max. Switching Power | 60 VA , 24W | |
| 2-7.Contact Resistance ( Initial ) | 100 mΩ. at 6 VDC 1A | |
| 2-8.Life Expectancy | Electrical | 100,000 operations at nominal load |
| Mechanical | 10,000,000 operations | |
3.GENERAL DATA
| 3-1.Insulation Resistance | Min.100MΩ at 500 VDC |
| 3-2.Dielectric Strength | 1,000VAC , 1min between open
contact 1,500VAC , 1min between contact and coil |
| 3-3.Surge Strength | 2,000 VAC ( 20 μs ) |
| 3-4.Operate Time | Max. 6ms |
| 3-5.Release Time | Max. 4ms |
| 3-6.Temperature Range | -30 to +60 ≧ |
| 3-7.Shock Resistance | 15G |
| 3-8.Vibration Resistance | 10 - 55 Hz , Amplitude 1.5mm |
| 3-9.Weight | 5 gr. |
| 3-10.Safety Standard | UL NO. E164730 CSA NO. LR109368 |
4.DIMENSIONS ( in mm )
 |
 |
  |
5.ORDERING CODE
| HRS2 | H- | S | DC 3V | ||
| | | | | | | | | |
| |
| |
|_____ |
NOMINAL
VOLTAGE: DC3V , DC5V , DC6V , DC9V , DC12V , DC24V | |
|
|____ |
_________ | ENCLOSURE S ---- WASHABLE | |||
|
|_____ |
________ | _________ | COIL NIL ---- STANDARD TYPE H ------- HIGH SENSITIVE TYPE ( 150 mW , 200 mW ) | ||
|
|_____ |
________ | _________ | _________ | TYPE |
6.COIL DATA CHART
|
ORDERING CODE |
COIL NOMINAL VDC |
COIL RESISTANCE Ω +/- 10% |
OPERATE VOLTAGE VDC |
RELEASE VOLTAGE VDC |
COIL NOMINAL mW |
| HRS2-S DC3V | 3 | 25 | 2.25 | 0.30 | 360 |
| HRS2-S DC5V | 5 | 70 | 3.75 | 0.50 | |
| HRS2-S DC6V | 6 | 100 | 4.50 | 0.60 | |
| HRS2-S DC9V | 9 | 220 | 6.75 | 0.90 | |
| HRS2-S DC12V | 12 | 400 | 9.00 | 1.20 | |
| HRS2-S DC24V | 24 | 1600 | 18.00 | 2.40 | |
| HRS2H-S DC3V | 3 | 45 | 2.25 | 0.30 | 200 |
| HRS2H-S DC5V | 5 | 120 | 3.75 | 0.50 | |
| HRS2H-S DC6V | 6 | 180 | 4.50 | 0.60 | |
| HRS2H-S DC9V | 9 | 400 | 6.75 | 0.90 | |
| HRS2H-S DC12V | 12 | 700 | 9.00 | 1.20 | |
| HRS2H-S DC24V | 24 | 2800 | 18.00 | 2.40 |
Table 1

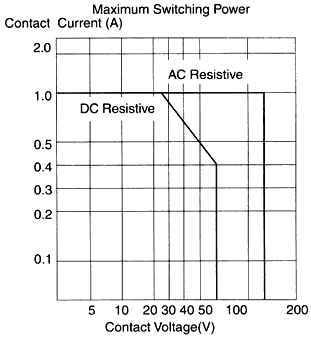

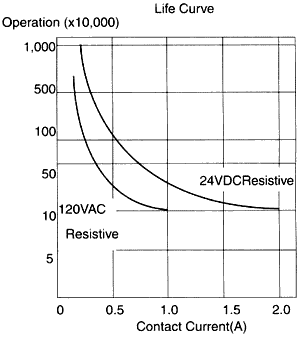

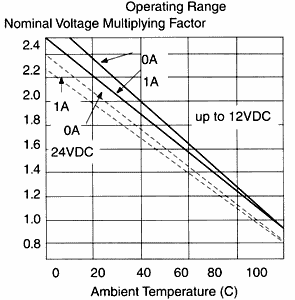

7.HRS2(H) CHARACTERISTIC DATA
 |
 |
 |
|
 |
 |
